Newton's Method on Systems
The following are examples of running Newton's method on systems of equations. All the examples are based upon systems which have the fifth roots of unity paired in various ways as solutions. Work with Mark Motyka led to [1]. We present some variants on those constructions, some new examples and give some annimations. The equations that we consider are:
In each case, the color in the image corresponds to the basin of attraction and the shade corresponds to the number of steps to convergence, mod 3. If the position in the image corresponds to w, then the initial point was selected as x0=(w,w) or x0=(w,c) as indicated in the examples.
204k

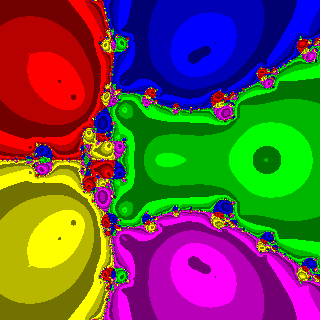

System (1) with x0=(w,i)
311k
System (1) with x0=(w,0.5)
321k

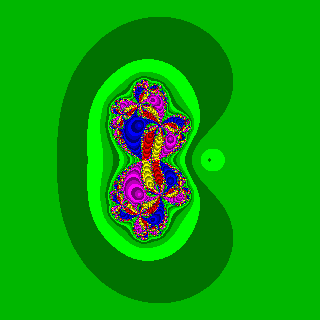

System (1) with x0=(w,w)
156k

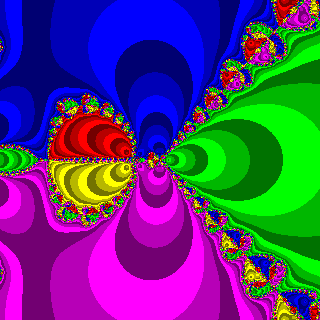

System (3) with x0=(w,1)
173k
System (4) with x0=(w,0.01)
300k
System (1) with x0=(w,w)
2008k
Animation of System (1) with x0=(w,c), with 0.1< c< 0.7
1016k
Animation of System (4) with x0=(w,c), with 0.001< c< 1
1908k
Animation of System (5) with x0=(w,w), zooming into the origin
Scripts
  1. A J script newt_sys.ijs to create the first image of this type.
  2. It requires raster5.ijs as well (installed in the fvj2 subdirectory of the J directory).

References

  1. Mark A. Motyka and Clifford A. Reiter, Chaos and Newton's Method on Systems, Computers & Graphics, 14 1 (1990),131-134.
