Complex dynamics of some generalizations of the 3x+1 function.

These images show the complex dynamics of some generalizations of the 3x+1 problem. They were originally created by Jeff Dumont and Cliff Reiter at Lafayette College to augment our paper "Visualizing Generalized 3x+1 Function Dynamics", Computers & Graphics, 25 5 (2001) 883-898. Some new additional material has been added. Click on the thumbnail to see the larger image or animation.
2k
The Escape Time
The Stopping Time
The Total Stopping Time
The Coefficient Stopping Time for T(x)
The Coefficient Stopping Time for T*(x)
The Coefficient Stopping Time for T**(x)

3k
The Stopping Time
The Escape Time
8k 7k 5k 8k
z=-17 z=-1 z=1 z=18
Zooms of the escape time

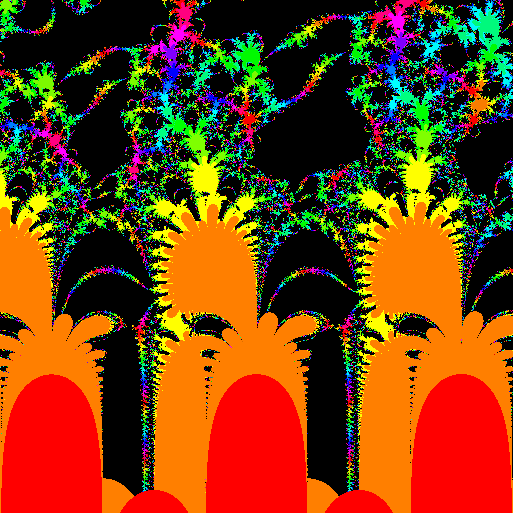

5k< Annimation zoom into escape time of the winding generalization centered at z = 17.
107k
Cliff and Jeff with a hanging of images of the winding generalization created for APL 2001 (a mechanical break down prevented it from arriving, so wasn't shown there).

3k
Here b=0 gives T(x), b=-0.5 gives W(x) and b runs from 0 to -1 in the aninmation (3.4M).
38k

Animation of the Stopping Time for the ax+1 function changing from x+1 to 5x+1 (978k).
Winding Escape time zoom.

2k
The Escape Time
The Stopping Time
The Total Stopping Time

3k
Here a runs from 1 to 5 for the animation (623k).

Preprints/Abstracts
Visualizing Generalized 3x+1 Function Dynamics [Preprint] [Abstract].

Real Dynamics of a 3-Power Extension of the 3x + 1 Function [Preprint] [Abstract].

Jsoftware Scripts
A J6.02 script 3x+1d.ijs that creates several images of this type. Original out of date script 3x+1.ijs
Note that J6.02 and graphics/fvj3, and media/image3 addons are required
